XDJY pilot handle

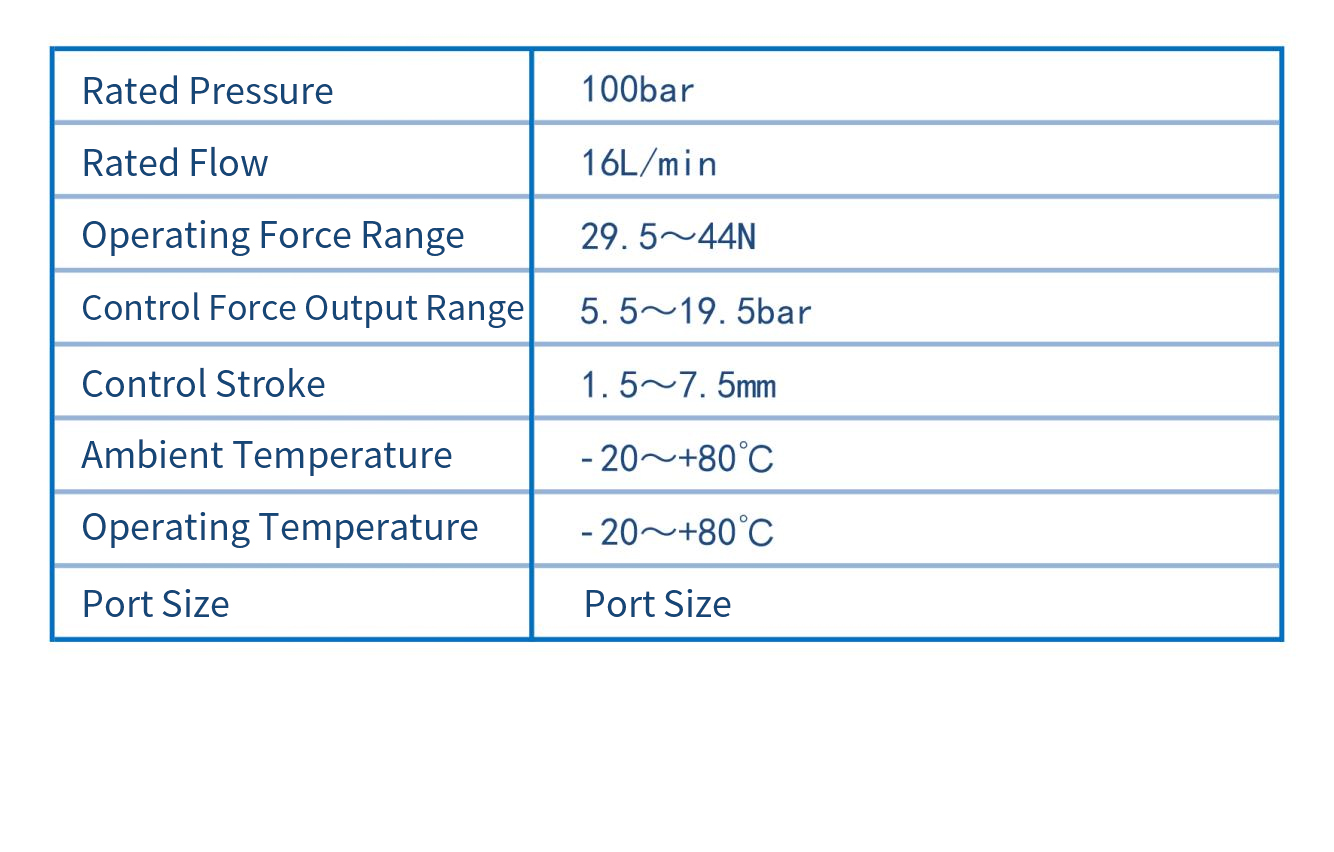

Specifications
Performance
Application

? At the neutral position, the control handle is held in place by four return springs. Oil ports (1, 2, 3, 4) are connected to the return port. When the control handle is actuated, the plunger is depressed against the return springs and the control spring. The control spring starts to push down the control spool, closing the connection between the respective oil ports and return port T. At the same time, the respective oil ports are connected to port P through a passage.


Mobile crane
